Kraft
Beschreibung:
Eine Kraft F verursacht eine Bewegungsänderung und/oder eine Formänderung. Gemessen wird die Kraft in der Einheit Newton N, welche sich wie folgt aus den Basiseinheiten zusammensetzt: kg·m·s-2.

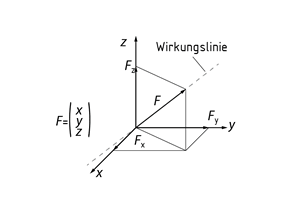

Sie ist vektoriell, abhängig von ihrer Größe, Richtung und Lage, darstellbar. Der Kraftvektor ist auf seiner Wirkungslinie frei verschiebbar. Im dreidimensionalen Raum wird die Kraft durch die in die Raumrichtungen zeigenden Komponenten Fx, Fy und Fz beschrieben. Greift eine Kraft unter einem Hebelarm an einem Körper an, so entsteht ein Moment und es resultiert eine Drehbewegung des Körpers.
-
Beispielsätze:
- Die geschlossene Seitenfläche verleiht dem Winkel hohe Tragkraft.
- Außerdem übertragen sie die Kraft bauartbedingt diskontinuierlich.
- Die Arbeitsplatzhöhe ist ohne viel Kraft und stufenlos verstellbar.
energy
Description:
Evidence of an energy-saving concept shall be provided for the planned plant. Brakes usually convert mechanical kinetic energy into heat energy. This potential energy content is stored in the deformed body.
-
Example sentences:
- Evidence of an energy-saving concept shall be provided for the planned plant.
- Brakes usually convert mechanical kinetic energy into heat energy.
- This potential energy content is stored in the deformed body.
force
Description:
A force F gives rise to a change of movement and/or a change of shape. The unit of measurement for force is the newton N, which is made up of the following units: kilograms, metres, seconds squared kg·m·s-2. It can be depicted as a Vector quantity based on its magnitude, direction and location. This force vector can be moved freely along its line of action. In a three-dimensional space, force is described using the components Fx, Fy and Fz, which each represent a different dimension. When a force acts on a body via a lever arm, moment is generated and the body is rotated.
-
Example sentences:
- It is calculated by adding together the vectors of the individual forces.
- Its reinforced steel design is also break-proof in crash scenarios.
- Depending on the design, chain drives may also transmit force intermittently.
power
Description:
Power is the Work $\Delta W$ and/or energy $\Delta E$ that is implemented over a specific period of time $\Delta t$. Power P is measured in $Nm/s$ or W (watts). It is important in both Mechanics and as electrical power. It is calculated using the formula $P(t)=\frac{\Delta W}{\Delta t}$ or $P(t)=\frac{dW}{dt}$. In the case of a translational movement, power P is the product of the Force vector $\overrightarrow{F}$ and the Velocity vector $\overrightarrow{v}$ that is acting in the same direction. In the case of a Rotation, it is the product of angular velocity $\overrightarrow{\omega }$ and moment $\overrightarrow{M}$. In hydraulics, power is obtained by multiplying the volumetric flow rate Q by pressure p.
-
Example sentences:
- Always disconnect the Light Fitting from its power source before conducting any maintenance or repair work.
- One wheel is powered and is also used for steering and braking.
- Luminous flux describes the power of a light source.
strength
Description:
A material's strength is the maximum stress to which a given cross-section of that Material can be subjected. It therefore indicates the material's Resistance to deformation. A maximum Force on the material's non-deformed cross-sectional area for a specific elongation or specific flow characteristics is used to define the strength. Strength values are not the stresses that actually occur. In most cases, they are calculated from the nominal stresses, i.e. from the test force and the cross-sections prior to the start of the test. Different strengths are defined depending on the type of stress. They include: Tensile strength Compressive strength Bulk strength Buckling strength Torsional strength Shear strength A further distinction is made according to whether the stress is uniaxial or multiaxial and whether a static or dynamic stress is applied to the component. This results in a differentiation between e.g.: Static strength Increasing strength Finite-life fatigue strength Fatigue limit Fatigue strength
-
Example sentences:
- Its high tensile strength offers additional security against rupture.
- The dual screw connection provides additional strength.
- A person's physical strength will also vary according to their age, body size, weight and gender.
energía
fuerza
Description:
Una fuerza F genera un cambio de movimiento o cambio de forma. La unidad de medición para la fuerza es el newton N, que está compuesto de las siguientes unidades: kilogramos, metros, segundos al cuadrado $kg?m?s^{-2} $. Se puede representar como una cantidad de vector basada en su magnitud, dirección y ubicación. Este vector de fuerza se puede mover libremente a lo largo de su línea de acción. En un espacio tridimensional, la fuerza se describe con los componentes $F_{X}$ , $F_{Y}$ y $F_{Z}$ , donde que cada uno representa una dimensión diferente. Cuando una fuerza actúa en un cuerpo mediante un brazo de palanca, se genera un momento y el cuerpo es rotado. Un desglose de los componentes en un vector de fuerza F
力
强度
Description:
一种材料的强度是指该材料的给定横截面能够承受的最大应力。因此它可以表示材料的抗变形力。在特定伸长率或特定流动特性范围内，材料未变形横截面面积上能够承受的最大力就是材料的强度。强度值不是实际产生的应力。在大多数情况下，通过公称应力计算强度，即通过试验中施加的力和试验开始前的横截面来计算。 根据应力的类型，强度可分为： 拉伸强度 压缩强度 整体强度 压曲强度 扭转强度 剪切强度 还可以根据施加在构件上的应力是单轴或多轴、静态或动态，而将强度以此分为： 静强度 增量强度 有限寿命疲劳强度 疲劳极限 疲劳强度
机械图
Description:
力F会引起物体的位移，也可能使物体产生形变。力的单位是牛顿 N， $N=1 kg•m s^{-2} $ 。
力是一个矢量，可由大小、方向和位置来描述。力矢量可沿其作用线自由移动。在三维空间中，力F被分解成了代表不同方向的三个矢量分量 $F_{X}$、 $F_{Y}$ 和 $F_{Z}$ 。当力通过力臂作用在物体上时形成了力矩，同时引起物体转动。

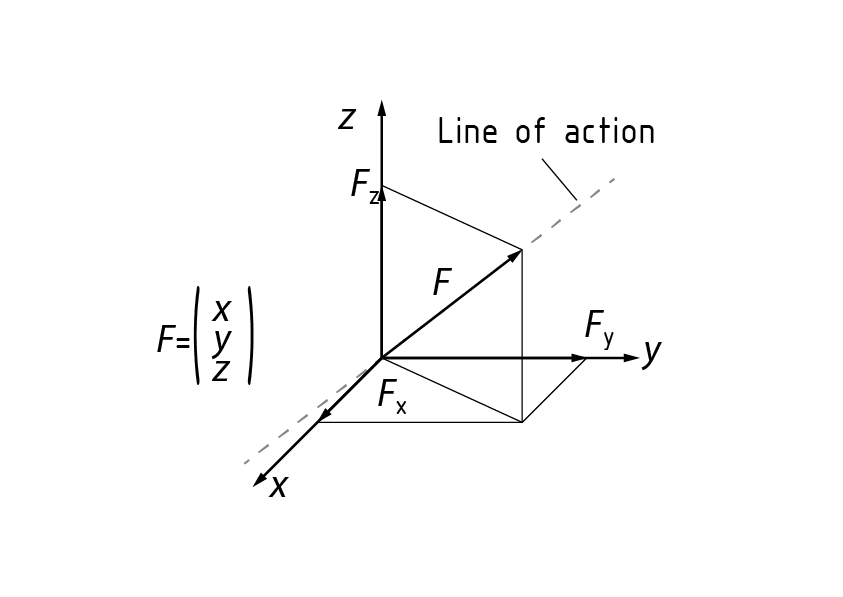

矢量力F 的分解
机械图
Description:
力F会引起物体的位移，也可能使物体产生形变。力的单位是牛顿 N， $N=1 kg•m s^{-2} $ 。
力是一个矢量，可由大小、方向和位置来描述。力矢量可沿其作用线自由移动。在三维空间中，力F被分解成了代表不同方向的三个矢量分量 $F_{X}$、 $F_{Y}$ 和 $F_{Z}$ 。当力通过力臂作用在物体上时形成了力矩，同时引起物体转动。
矢量力F 的分解
